When morphing from one face to another, the program can automatically detect the facial features (eyes, nose, mouth, etc.) and place key dots on appropriate positions. This will extremely save your time.

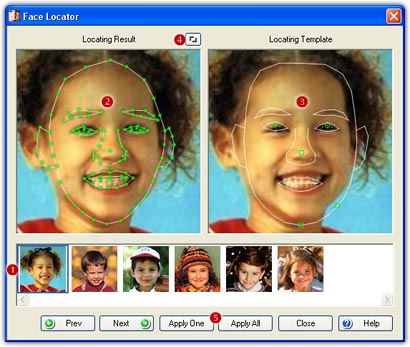

1. Choose the Add-Ins/Face Locator menu to open the window below.
2. All the source images in current project are listed
here (
).
Click a thumbnail to start to locate the facial features on the source image. You can also click the Prev/Next
button
to load the previous or next source image.
3. The locating result will be presented in the left
window (
).
In this version, total 93 key dots will be placed on a face, and this will make the
final morphing result very smooth.
4. To achieve more accurate locating result, you can do a little manual adjustments to make the locating template (displayed with the white lines in the right window) as close to the face on the image as possible. Once the locating template is changed by any following adjustment, a corresponding locating result will be presented in the left window in real time.
Adjust Pupils: You can directly click on the center
of the pupils on the image or drag the two circle handles (
)
to move the pupils of the locating template to the correct positions. This is the
easiest and fastest way to adjust the locating template.
Move: Move cursor over this square handle (
)
and drag it to move the whole locating template.
Rotate: Move cursor over this square handle
(
)
and drag it to rotate the whole locating template.
Scale: Move cursor over this square handle (
)
and drag it to scale the whole locating template.
5. If you want to manually edit the locating result to
make it completely perfect, double-click the left window or click the Edit
button(
).

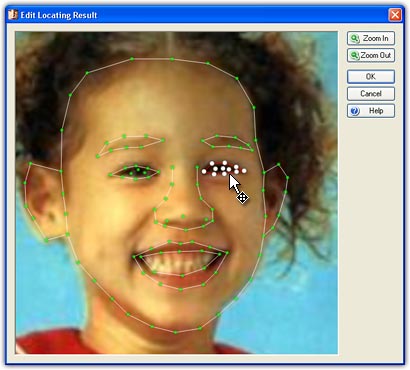

On the edit window below, you can simply drag a dot or even a line to move it to
the perfect position. Please note that to move a line directly you should hold
the CTRL key while dragging, otherwise the program will always automatically
detect the better position for the line. Also, you can zoom the edit zone by
using mouse wheel scrolling or pressing the key "," or ".".
6. When all the locating results are satisfied, click the
Apply All button (
)
to apply the results to the project. You can still edit the key dots in the main
interface when needed.
7. When a new source image added to the project, please launch Face
Locator to preview and adjust the locating result, you then need
to click the Apply One button ()
to apply the result only to the new source image.
Remarks
• Since Face Locator locates facial features automatically, there are some requirements for the pictures it can work with. To achieve the best locating result, the pictures should be taken full-faced and oriented vertically with good lighting conditions. The variation of head position, facial expression, illumination, age and race etc., will cause the locating result unsatisfied or even unacceptable.
• Face Locator is only available in FantaMorph Deluxe.
